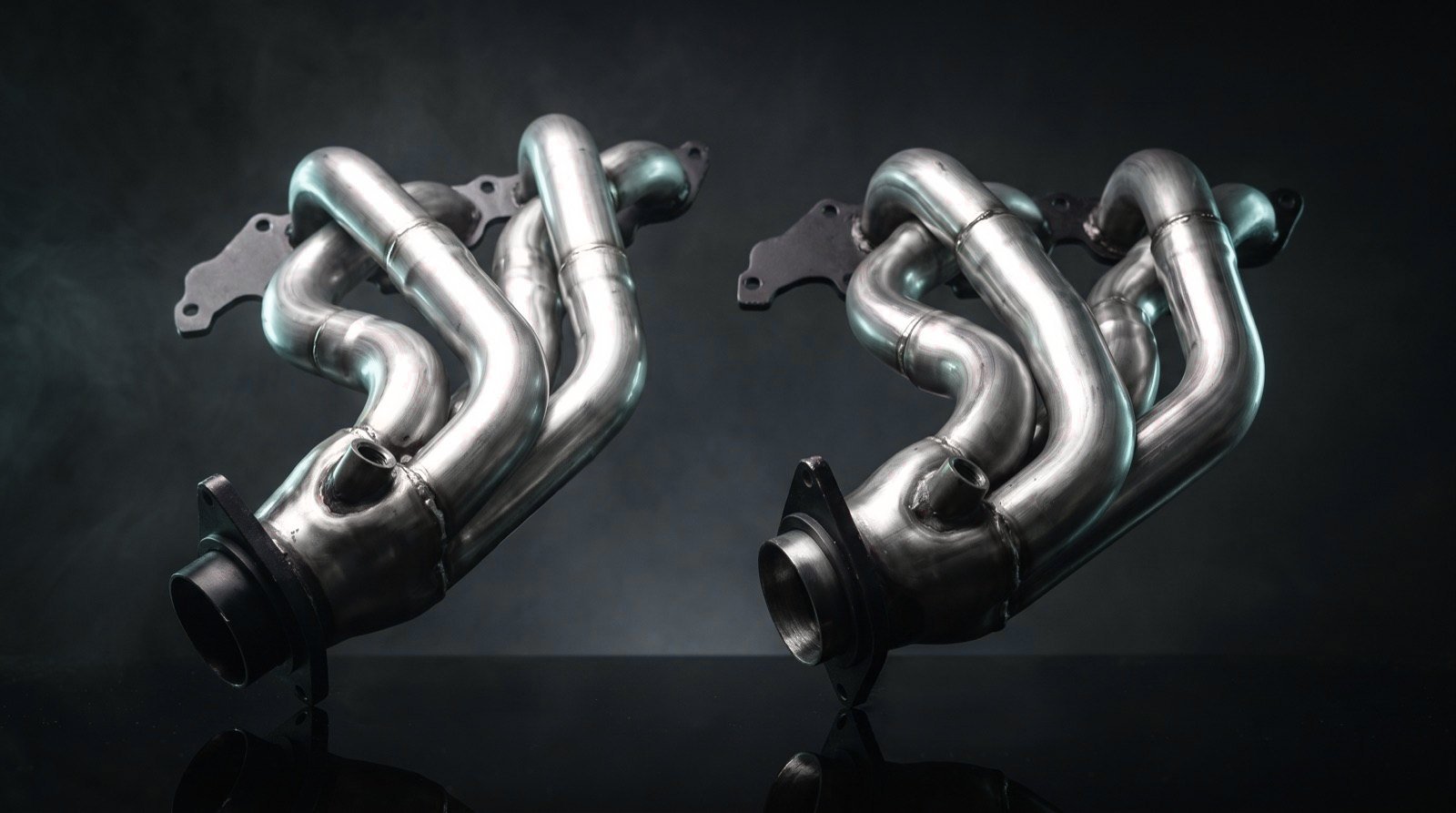

DMS 4-1 headers
Not a cheap Chinese copy. Handmade and TIG-welded in Greece by DMS.
- ✓45mm 4-1 for the 2.5 Duratec, 40mm 4-1 for the 1.8 and 2.0
- ✓Fitted on more than 300 cars over 10 years
- ✓Handmade and TIG-welded in Greece
€550+ VAT
Demo · sample data
Your car. Your files. Your tuner. Anywhere.
See how a remote session works: you log a drive, Yiannis reads it, and you get clear feedback and a calibration revision for your setup.
Sample car
MX-5 NC 2.0 · naturally aspirated · customer car
Goal: a clean, safe full-throttle pull after fixing an overheating issue.
The case in short
- Car
- Mazda MX-5 NC1 2.0, naturally aspirated, factory ECU on MazdaEdit. Customer car, logged by the owner abroad.
- What the log shows
- A full-throttle pull from 3000 to 7000 rpm. Air/fuel ratio 15.2:1 when the throttle opens, 14.1:1 by 5400 rpm, 13.7:1 near 6900 rpm. No knock correction. Coolant 89–90 °C.
- Yiannis’s reading
- Too lean at full throttle — it wants a richer mixture.
- Change
- Richer full-throttle fuelling in the next calibration revision.
- Result
- Pending — the follow-up log will be added here when it comes in.
| Engine speed | AFR | Pedal | Coolant |
|---|---|---|---|
| 3016 | 15.2:1 | 100% | 89 °C |
| 5414 | 14.1:1 | 100% | 89 °C |
| 6136 | 13.9:1 | 100% | 89 °C |
| 6868 | 13.7:1 | 100% | 90 °C |
Source: one real customer log, 3 Oct 2026, MazdaEdit, factory front oxygen sensor. Anonymised; no power figure is claimed from a road log.
Driving log
A recording of what your engine was doing while you drove.
I don’t have this yet — help me get itFull-throttle pull, 3000 → 7000 rpm
━ rpm ━ AFR ┃ knock
Engine speed
3016
AFR
15.2:1
Pedal
100%
What we noticed · From the log
Full throttle from ~3000 rpm: the mixture reads 15.2:1 — the same as light cruise.
What it means · Yiannis’s reading
Too lean for full throttle. It wants a richer mixture here.
What happens next
Richen the full-throttle fuelling in the next revision.
This session so far
- 1. Files received
✓ done - 2. Yiannis’s review
✓ done - 3. Calibration revision
next - 4. Follow-up log
next - 5. Feedback
next
Want this level of attention for your NC?
Tell us about your car. We’ll confirm compatibility and help you prepare the files.
Check my car with DMS — which engine does your NC have?
Developed by DMS
The parts we make for the MX-5 NC

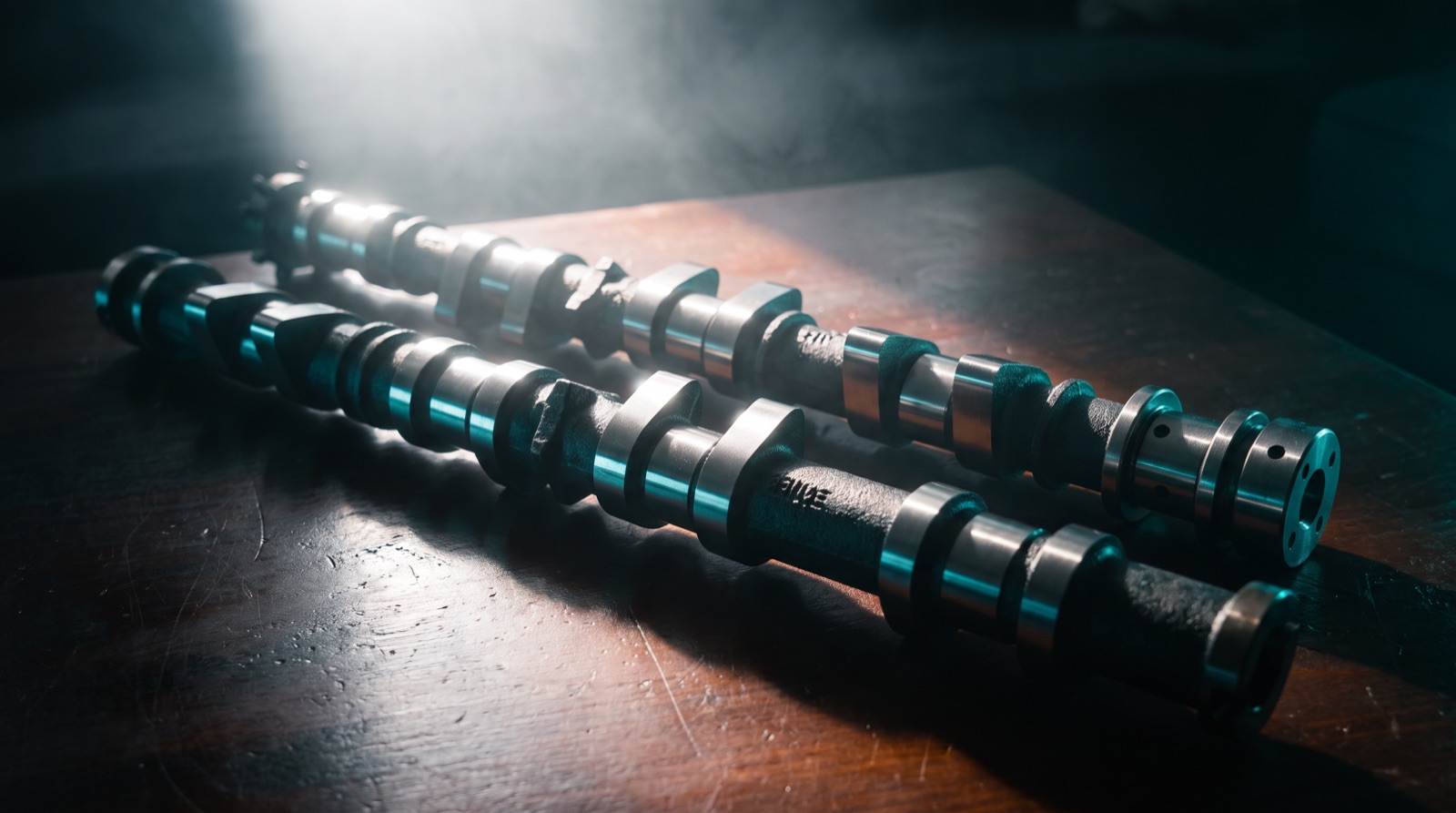

Headers and cams we make and develop ourselves, on our own dyno. Prices ex VAT.
Remote tuning · MX-5 NC — our specialty
Build your NC tune.
Spec your exact setup below — we write a custom, dyno-developed calibration for it on MazdaEdit (or VersaTuner) and refine it on your datalogs until it’s right. remote tunes delivered across Europe and beyond.

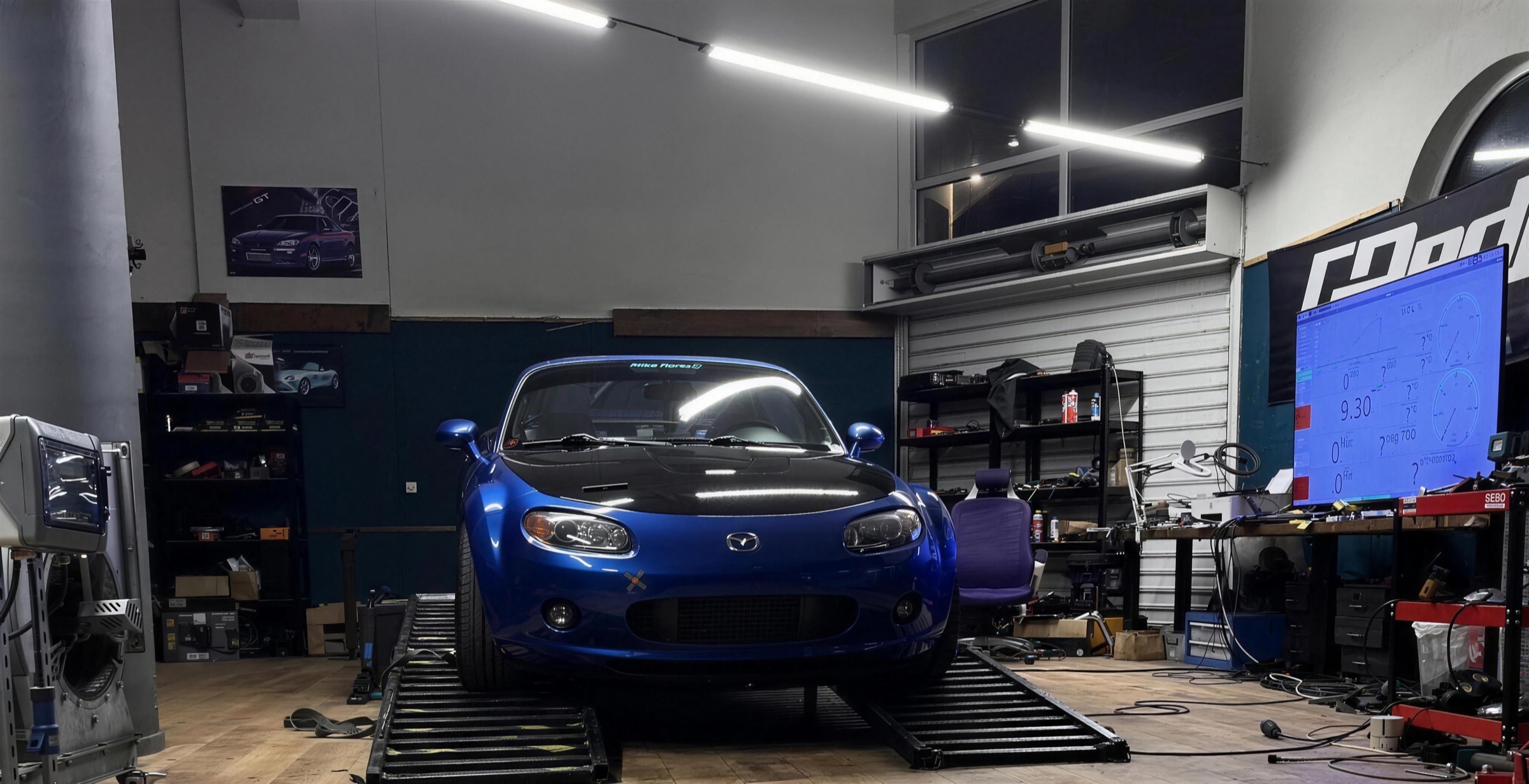

A real tuning session on our dyno
Simple packages
Pick what fits — then set the exact details in the builder below. Every tune is written custom for your car.
Log Check
€50+ VAT
We read your datalog and report your engine’s health — no tune.
- ✓AFR, knock, temps & trims
- ✓Plain-language report
- ✓Best first step
Stage 0
€250+ VAT
Features only — pops & bangs, launch, limiter, deletes. No power tune.
- ✓Pick your features
- ✓Ideal for a stock engine
- ✓Same custom quality
Most popular
N/A Tune
€450+ VAT
Custom naturally-aspirated calibration, dyno-developed and refined on your logs.
- ✓Written for your exact spec
- ✓Drivability first
- ✓Revisions until it’s right
Turbo / SC
€650+ VAT
Full custom map for turbo or supercharged NC — safe, usable boost.
- ✓Forced-induction mapping
- ✓Fuel & timing on logs
- ✓Live session available
⚡ Extremely fast turnaround — often same-day, sometimes within the hour. Yiannis checks email & WhatsApp every hour, so we usually start right away. No waiting weeks for a tune.
1 · Choose your package
Log check — €50Yiannis reads your datalog (.csv) and reports on your engine’s health — no tune
Stage 0 — €250Features only — no performance tune
✓ Custom performance tuneN/A €450 · Turbo / Supercharger €650
2 · Choose your software
Your MazdaEdit setup
3 · Choose your engine
4 · Choose your generation
5 · Choose your MAF / intake size
6 · Choose your MAP sensor
7 · Choose your injectors
8 · Options & deletes
Included — no extra charge for now.
9 · Choose your fuel octane
10 · Choose your rev limiter
11 · Choose your application
12 · Swapped ECU?
13 · Need an IMMO OFF solution?
Usually needed when running a swapped or second-hand ECU.
14 · How do you want to be tuned?
✓ Send logs — get solutionsIncludedYou drive & datalog, send us the files — we send solutions and revisions until it’s right.
⚡ LIVE SESSION with Yiannis via AnyDesk+€150Yiannis tunes your car LIVE — like he’s sitting next to you. Live chat, live changes, he controls and handles everything; you just drive. 5G/hotspot connection to your laptop required.
Your build — ready to order
MX-5 NC 1.8 MZR · NC1 (2006–2008) · MAF: Stock (63.5mm) · MAP: Stock · Injectors: Stock · Fuel: 95 RON · Limiter: Stock (7000) · App: N/A · Software: MazdaEdit
N/A custom tune€450
VAT 24%€108
Total (incl. VAT)€558
Your details — needed to save, download the proforma or check out.
Order on WhatsAppPayment after confirmation (PayPal / Revolut).
Already tuned by us? Ask about upgrade pricing.
Is my car supported?
All Mazda MX-5 NC (2005–2015), 1.8 & 2.0 — via MazdaEdit. Not sure? Send your ECU part number on WhatsApp first — we confirm it before you pay.
MazdaEdit also covers these platforms
MX-5 NC (1.8, 2.0) — 3rd genMazdaSpeed3 / MPS3 — 1st genMazdaSpeed3 / MPS3 — 2nd genMazdaSpeed6 / MPS6CX-7 (2.3 DISI Turbo) <2010CX-7 (2.3 DISI Turbo) 2010+CX-7 (2.5 NA) 2010+MPV (2.3 DISI Turbo) JDM/ADMMPV (2.3 NA, 3.0 NA) JDM/ADMMazda3 (1.6/2.0/2.3/3.0) — 1st genMazda3 (1.6/2.0/2.5 NA) — 2nd genMazda3 (SkyActiv 2.0/2.5 NA) — 3rd genMazda5 / Premacy (2.0/2.5 NA) — 2nd genMazda6 (1.8/2.0/2.3 NA) — 1st genMazda6 (1.8/2.0/2.5 NA) — 2nd genMazda6 (SkyActiv 2.0/2.5 NA) — 3rd genRX-8 (SE3P) 2003–2011+Mazda2 (1.3/1.5 NA) — 3rd gen 2007+CX-5 (SkyActiv 2.0/2.5 NA)
The builder above prices the MX-5 NC. Running another Mazda? We tune all of these on MazdaEdit too — pick “Turbo / N/A” and message us, or hit WhatsApp for a per-build quote.
What you need· MazdaEdit (read/write for the NC ECU)· A generic J2534 / OBD cable + a Windows laptop· No equipment? Grab the Lite + cable kit above — full setup included.
How it works1. You read the stock file & send it2. We build your custom map3. You flash it — guided4. Drive, datalog, send logs5. We refine until it’s right
Why DMS
There are plenty of “tuners” out there giving remote tuning a bad name. Our NC calibrations are developed in-house on our dyno — and the dyno proves them. We don’t chase numbers: the target is drivability and smooth, usable delivery on your exact hardware and fuel. Every file is written for your spec — nothing pre-made.
Prefer it strapped to the dyno? The same calibration can be developed in person at our dyno in Artemida, Athens — message us.
Two platforms, one standard
Every NC tune is custom and dyno-developed. The only choice is which platform it runs on — we lead with MazdaEdit, and now officially offer VersaTuner too.
MazdaEditPrimary · 15 yearsOur home platform — mastered over 15 straight years, with the best datalogger in the world. It feels native to us, so it’s our default. The builder above prices your tune on MazdaEdit.
VersaTunerNow officialWe now officially tune the MX-5 NC on VersaTuner too. Prefer it, or already running it? We write your custom calibration on VersaTuner exactly the way we do on MazdaEdit — same guidance, same revisions until it’s right. You’ll need a VersaTuner Lite licence for your car; we walk you through setup and every step.VersaTuner NC support →
Options — explained
Pops & Bangs — Pops on throttle lift-off — from a mild, OEM-plus burble to aggressive. We set the level you ask for.
Launch control — Holds RPM at a set point for clean, repeatable launches — set to the number you want.
Flat shift — Full-throttle gear changes without lifting — keeps the engine on song between shifts.
Vmax / speed limiter — Removes the factory speed limiter.
DTC Delete — Permanently disables the specific fault codes you list (e.g. P0037,P0038) — for hardware you have removed.
Rear O2 sensor delete — Tells the ECU the rear O2 sensor is no longer there once you have removed it — no light, no codes.
Intake runners delete (aluminum side) — For the NC intake runners (aluminum side): once removed, the ECU stops looking for them — clean running, no codes.
IMMO OFF — Immobilizer solution for swapped or second-hand ECUs — the engine starts without the original key pairing.
Deletes & bypasses exist to inform the ECU about hardware the owner has already removed. They are not intended for passing emissions testing or manipulating emissions equipment — off-road / motorsport use only. You are responsible for complying with your local laws.
Remote tuning — frequently asked questions
Everything about how a DMS remote tune for the MX-5 NC works, what you need, and what to expect.
How does remote tuning for the MX-5 NC work?+
You read your car’s stock ECU file with MazdaEdit and a generic J2534/OBD cable, send it to us, and we build a custom calibration for your exact hardware and fuel. You flash it back — fully guided — then send us datalogs so we refine the map until it’s spot-on. No pre-made files.
How much does a remote tune cost?+
The MX-5 NC builder above prices it live: Log Check €50, Stage 0 €250, naturally-aspirated custom tune €450, and forced-induction (turbo/supercharger) €650. IMMO OFF, ECU swap and live remote sessions are optional add-ons. You only pay after we confirm your exact ECU.
What equipment do I need?+
A Windows laptop, a generic J2534 / OBD flashing cable, and the MazdaEdit software to read and write your NC ECU. No gear yet? Add the Lite + cable kit in the builder and we set everything up for you.
Do I need my own tuning licence?+
For the MazdaEdit route we handle the tooling. If you already own a VersaTuner Lite licence you can use that instead — VersaTuner is a “bring your own licence” option; we don’t resell it. New to tuning? Go MazdaEdit + cable and we configure it all.
Is remote tuning safe for my engine?+
Yes. Every NC calibration is developed in-house on our own dyno and validated from your real datalogs. We tune for clean, usable power and drivability on your specific fuel and hardware — never blind number-chasing.
Which MX-5 NC models are supported?+
All Mazda MX-5 NC (2005–2015), both 1.8 and 2.0 engines, stock or modified. Not sure? Send us your ECU part number on WhatsApp first — we confirm it before you pay. Other Mazda platforms are supported on MazdaEdit too — ask for a per-build quote.
Can you tune a turbo or supercharged NC?+
Yes — forced-induction builds are fully supported. Pick the Turbo / Supercharger option in the builder. For custom hardware we’ll want a quick spec rundown so the map matches your setup exactly.
How long does a remote tune take?+
Once we have your stock file, the first custom map is usually ready within a couple of working days. Final refinement depends on how quickly you return datalogs — most builds are dialled in over one or two log-and-revise rounds.
Remote · worldwide
Shipped to drivers everywhere.
A few of the places we've already delivered DMS remote tunes. Wherever you are, the process is the same — send a datalog, get a custom, dyno-developed map back.
GreeceAustraliaUnited KingdomUnited StatesUAEGermanySpainRomaniaIsraelBulgariaFranceNetherlandsFinlandNorwayPortugalCyprusItalyBelgiumSwedenAustriaSwitzerlandPolandIrelandDenmark…and beyond
You talk to Yiannis himself — not a bot.
The person who tunes your car answers you directly. Support 6 days a week, typical WhatsApp reply within ~5 minutes, on anything.
Direct to Yiannis6 days a weekWhatsApp ~5 min
MEASURED ON THE DYNO
Stage 1 on a stock NC 1.8: 131 → 147 hp
A completely stock MX-5 NC 1.8, Stage 1 calibration only, on pump fuel. On our dyno it went from 131 to 147 hp and from 161 to 180 Nm (+16 hp, +19 Nm) without changing a single part.
