MX-5 NC · 2.5 Duratec swap
The 2.5 swap,
step by step.
The full DIY route to a 2.5L L5-VE in your NC — sourcing, prep, install, wiring, ECU calibration and break-in. Real numbers, the mistakes to avoid, and where we come in.
€1.5–2.5k
DIY cost
183 hp
/ 245 Nm
~72 h
build time
0
fabrication
Real dyno results
Every number on this page is a real pull on our in-house dyno — DynoRevolt, DIN 70020, not a brochure estimate.
Real DynoRevolt pulls on our in-house dyno. Power solid, torque dashed. Customer names removed.
The 7 steps
1

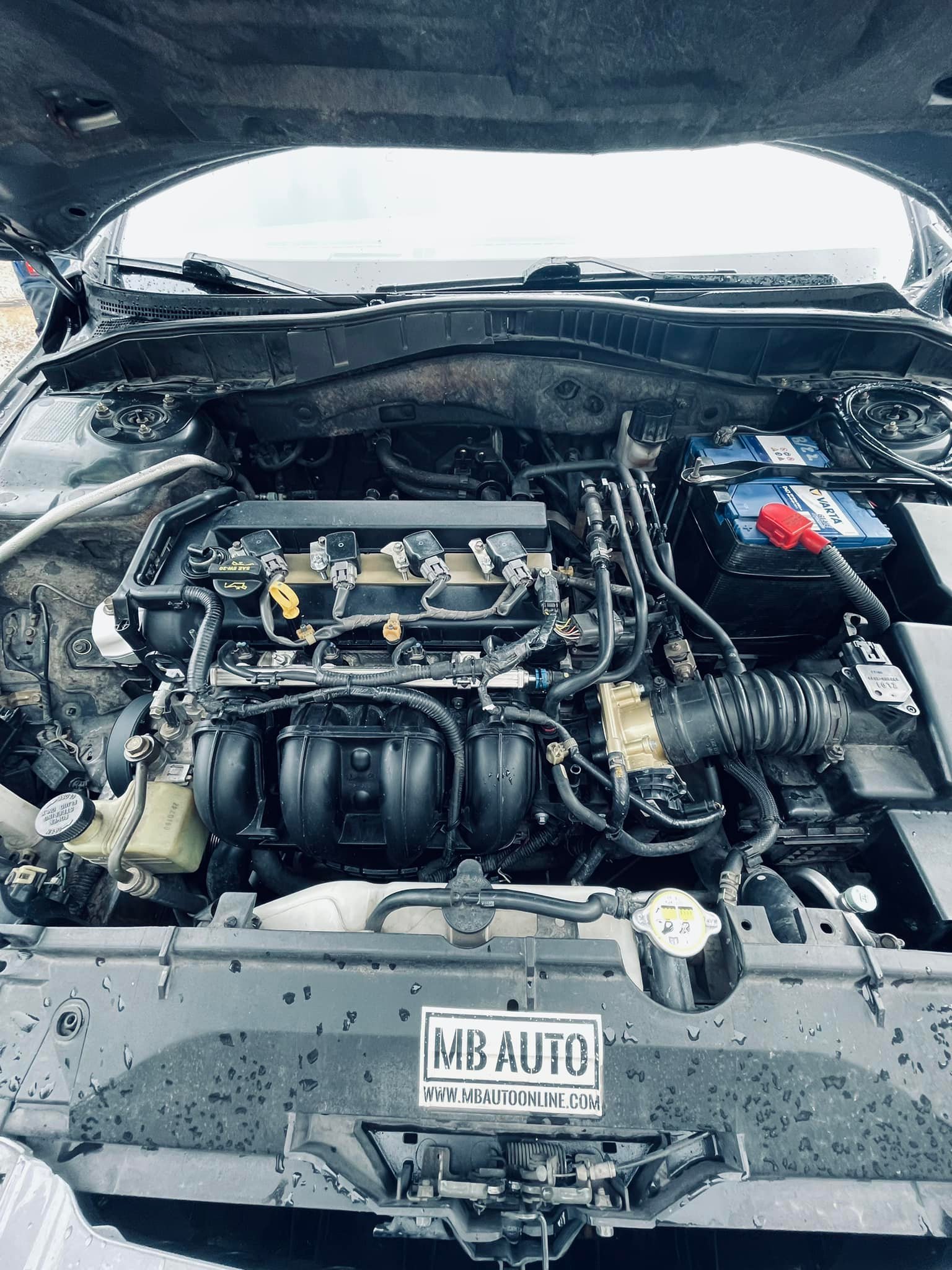

Source the L5-VE engine
1–4 weeksFind a good-condition 2.5L L5-VE from a Mazda 3, 5 or 6 donor — a 2006–2013 model for best compatibility.
- Check compression on all 4 cylinders (min 170 psi, even across)
- Inspect timing chain for stretch (common on high-mileage units)
- Verify no oil sludge or excessive blow-by
- Preferred donors: Mazda 3 2.5 (2009–2013), Mazda 6 2.5 (2009–2013), Ford Fusion 2.5 and similar
- Or skip the hunt — DMS supplies engines inspected inside on camera, mileage verified (€2,000 in stock, Europe shipping €350 + VAT)
Watch out: This swap is for the MX-5 NC (MZR platform) only — it does not fit NA/NB 1.8 BP cars.
2
Engine preparation
1–2 daysPrep the L5-VE before installation. Skipping these steps causes 90% of swap failures.
- Balance shaft delete: remove the assembly and seal the oil gallery with a proper block-off plate
- Replace all main seals: front crank, rear main, cam seals
- New gasket set: valve cover, oil pan, intake manifold
- New timing chain tensioner (genuine Mazda)
- New water pump (preventive — saves a future engine-out)
- New thermostat for track use (82°C)
Watch out: DMS includes a balance shaft delete kit with every swap package.
3
Remove the stock engine
4–8 hoursRemove the stock 1.8L or 2.0L. Label all connectors and take photos for reference.
- Drain all fluids: coolant, oil, power steering
- Disconnect battery, label all electrical connectors
- Remove exhaust from the manifold down
- Remove intake manifold and accessories
- Disconnect AC compressor (do NOT open the AC system — unbolt and move aside)
- Support transmission, unbolt engine-to-gearbox bolts
- Remove mounts and lift the engine out
4
Install the 2.5L L5-VE
6–10 hoursThe L5-VE is a direct bolt-on to the NC chassis — same mounting points, same bellhousing pattern, no fabrication.
- Transfer accessories: alternator, AC compressor, power steering pump
- Use the NC intake manifold (NOT the donor manifold) — it clears the bonnet
- New pilot bearing in the flywheel (critical for gearbox alignment)
- New clutch rated for 260Nm+ (ACT, Exedy Stage 1 or equivalent)
- New genuine Mazda friction washers for timing chain sprocket bolts
- Torque all bolts to Mazda spec
- The L5-VE uses the same MZR mounting points
Watch out: Use the NC intake manifold. The donor manifold (Mazda 3/6) has a different throttle-body angle and will not clear the bonnet.
5
Wiring & sensors
2–4 hoursThe L5-VE uses the same ECU connector as the NC 2.0L. Most wiring is plug-and-play.
- All sensor connectors are identical between LF-VE (2.0) and L5-VE (2.5)
- Connect: MAF, MAP, CKP, CMP, TPS, IAT, ECT, O2, injectors, coils
- Verify VVT solenoid wiring (intake and exhaust)
- Ground all chassis and engine grounds properly
6
ECU calibration
2–4 hoursThe ECU must be recalibrated for the larger displacement, injector flow and VVT timing. This is not optional.
- Use MazdaEdit to flash a 2.5L base calibration
- Key parameters: injector scaling, MAF calibration, VVT maps, ignition timing, rev limit
- Base idle should settle at 750–800 rpm
- DMS offers remote calibration for DIY builders
- Dyno verification recommended for the final tune
Watch out: Do NOT run the 2.5L on the stock 2.0L calibration — the different displacement and injector flow cause dangerous lean conditions at higher RPM.
7
First start & break-in
1–2 daysInitial startup checks and break-in procedure.
- Pre-oil: crank with plugs removed until the oil-pressure light goes off
- First start: idle 5 min, check for leaks and abnormal noises
- Verify oil pressure, coolant temp, no warning lights
- Break-in: 500 km of varied RPM (2000–5000, no sustained high RPM)
- After 500 km: re-check all bolts, change oil (break-in debris)
- After 1,500 km: full power is safe
Parts list — 1.8 vs 2.0
What you keep, what you buy.
Verified on our own swaps. Only the ECU and the oil pickup depend on whether your NC is a 1.8 or a 2.0 — everything else is the same list.
| Part | NC 1.8 | NC 2.0 |
|---|---|---|
| Reuse from your car | ||
| Exhaust manifold | Reuse — same MZR bolt pattern | Reuse |
| Crank pulley | Reuse (new diamond washers) | Reuse (new diamond washers) |
| Ignition coils | Reuse | Reuse |
| Water pump | Reuse | Reuse |
| Sump / oil pan | Reuse — the 2.5 pan does not clear the NC subframe | Reuse |
| Intake manifold | Reuse the NC manifold | Reuse the NC manifold |
| Alternator, A/C compressor, PS pump + brackets | Reuse | Reuse |
| Starter, engine mounts | Reuse | Reuse |
| Dipstick + tube, thermostat + housing | Reuse | Reuse |
| Radiator + hoses, engine wiring harness | Reuse | Reuse |
| Pulleys, tensioner, idlers | Reuse | Reuse |
| Flywheel | Reuse (stays on the gearbox side) | Reuse |
| Different for 1.8 vs 2.0 | ||
| ECU | Replace with a 2.0 ECU — the 1.8 unit will not run the 2.5 (DMS: €350, immobiliser handled, base map) | Keep yours — reflashed with the 2.5 map |
| Oil pickup | Replace with the 2.0 pickup (DMS: €80) | Keep yours |
| Buy new (both) | ||
| Balance-shaft delete kit | Included in DMS kits | Included in DMS kits |
| Gaskets & seals (service kit) | New — DMS service kit +€350 | New — DMS service kit +€350 |
| Spark plugs NGK ILTR5K13, accessory belt | New | New |
| VVT wiring pigtail | New | New |
| Crank pulley bolt | New bolt every time | New bolt every time |
| Clutch rated to the new torque | Strongly recommended (extra) | Strongly recommended (extra) |
| No longer needed | ||
| Old block, head, crank, rods, pistons, cams, injectors | Remove — keep the old 1.8 ECU as a fallback | Remove |
Crank pulley bolt: 96–104 Nm, then 87–93°, new bolt every time. Full procedure ›
Tools you'll need
Engine removal
- Engine hoist / crane
- Engine leveller
- Transmission jack
- Socket set (metric 8–21mm)
- Breaker bar
- Impact wrench
Installation
- Torque wrench (10–200Nm)
- Mazda friction-washer tool
- Thread locker (medium)
- Gasket scraper & cleaner
- New coolant & engine oil
- Mazda RTV sealant
Electrical & tuning
- Multimeter
- Wire crimping tool
- MazdaEdit software + cable
- OBD2 scanner
- Wideband AFR gauge (recommended)
Mistakes that kill swaps
critical
No ECU recalibrationDangerously lean at higher RPM — engine damage within minutes of hard driving.
high
Reusing the old clutchClutch slip under 260Nm — replacement is engine-out.
high
Using the donor intake manifoldWon't clear the bonnet. Use the NC manifold.
medium
Reusing old sealsOil leaks within weeks. Front crank + rear main must be new.
medium
Skipping the pilot bearingGearbox input-shaft misalignment, noise, premature synchro wear.
What a DIY swap costs
| Part | Budget | Premium |
|---|---|---|
| 2.5L L5-VE engine (DMS — visually inspected) | €2,000 | €2,000 |
| Clutch kit (260Nm rated) | €200–300 | €350–450 |
| Seals, gaskets, hardware | €150–200 | €200–300 |
| Balance shaft delete kit | €80–120 | €100–150 |
| Water pump, thermostat | €60–100 | €80–120 |
| ECU calibration (remote) | €450 | €500 |
| Misc (fluids, hardware) | €100–150 | €150–200 |
| DIY total | €3,040–3,320 | €3,380–3,720 |
European market, indicative. Excludes tools and shop labour. DMS packages from €2,600 in the 2.5 Swap Builder.
The complete guide: MX-5 NC 2.5 swap — power, cost, reliability, parts ›
Packages and pricing: cost, packages, turn-key ›
Questions
Can I do the 2.5 swap in my garage?
Yes — with an engine hoist, a good socket set and basic MX-5 experience. Same engine family, same mounting points, same wiring. Budget 2–3 weekends for a first-time swap. The most technical part is the ECU calibration, which DMS can handle remotely.
Which parts do I reuse from my 1.8 or 2.0?
Almost everything bolted to the outside of the engine carries over: exhaust manifold, crank pulley, coils, water pump, sump, the NC intake manifold, alternator, A/C and power-steering pumps with brackets, starter, mounts, thermostat, radiator and hoses, and the wiring harness. Only two parts depend on your car: a 1.8 needs a 2.0 ECU and the 2.0 oil pickup; a 2.0 keeps both (the ECU is reflashed). New: balance-shaft delete kit, gaskets and seals, plugs, belt, VVT pigtail, crank pulley bolt — and a torque-rated clutch is strongly recommended.
Do I need to modify the subframe or mounts?
No. The L5-VE uses identical mounting points to the stock MZR 2.0L. It drops in with zero chassis modifications — a factory-level fit.
Which transmission works best?
The stock NC 5-speed and 6-speed both work perfectly; the 6-speed is preferred for the closer ratios. Same bellhousing pattern — no adapter plate needed.
How much does a DIY swap cost?
Budget roughly €2,980–€3,450 for a complete DIY swap with a DMS-supplied tested engine (€2,000): clutch (€200–€400), seals/gaskets (€150–€200), balance shaft delete kit (€80–€150), misc (€100–€200), plus €450–€500 for remote ECU calibration. Or skip the hassle — DMS packages start at €2,600 in the 2.5 Swap Builder.
Can I add a turbo to the 2.5L later?
Yes — the 2.5L is the ideal turbo base. Many owners do the NA swap first, enjoy the 183hp, then add a turbo later — around 380hp on stock internals, and 500+hp on a built engine. DMS offers complete turbo packages.
Does DMS support DIY swaps remotely?
Yes — guidance via WhatsApp and remote ECU calibration. You build it, we tune it, same DMS quality wherever you are.
